DESCRIPTION

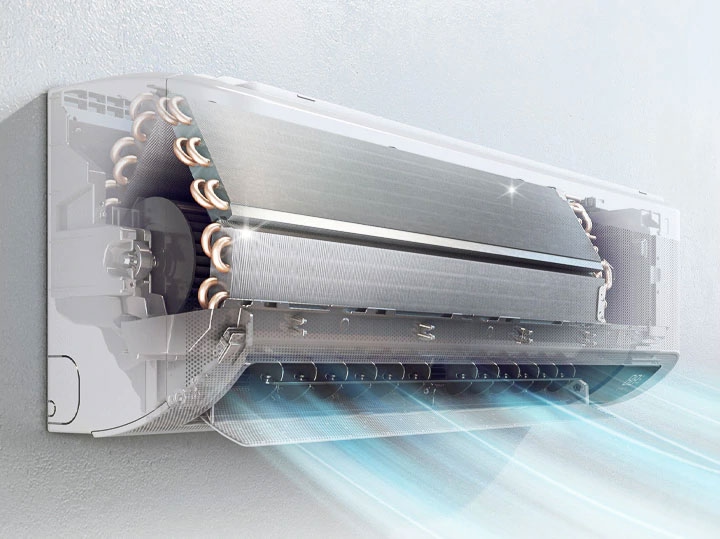

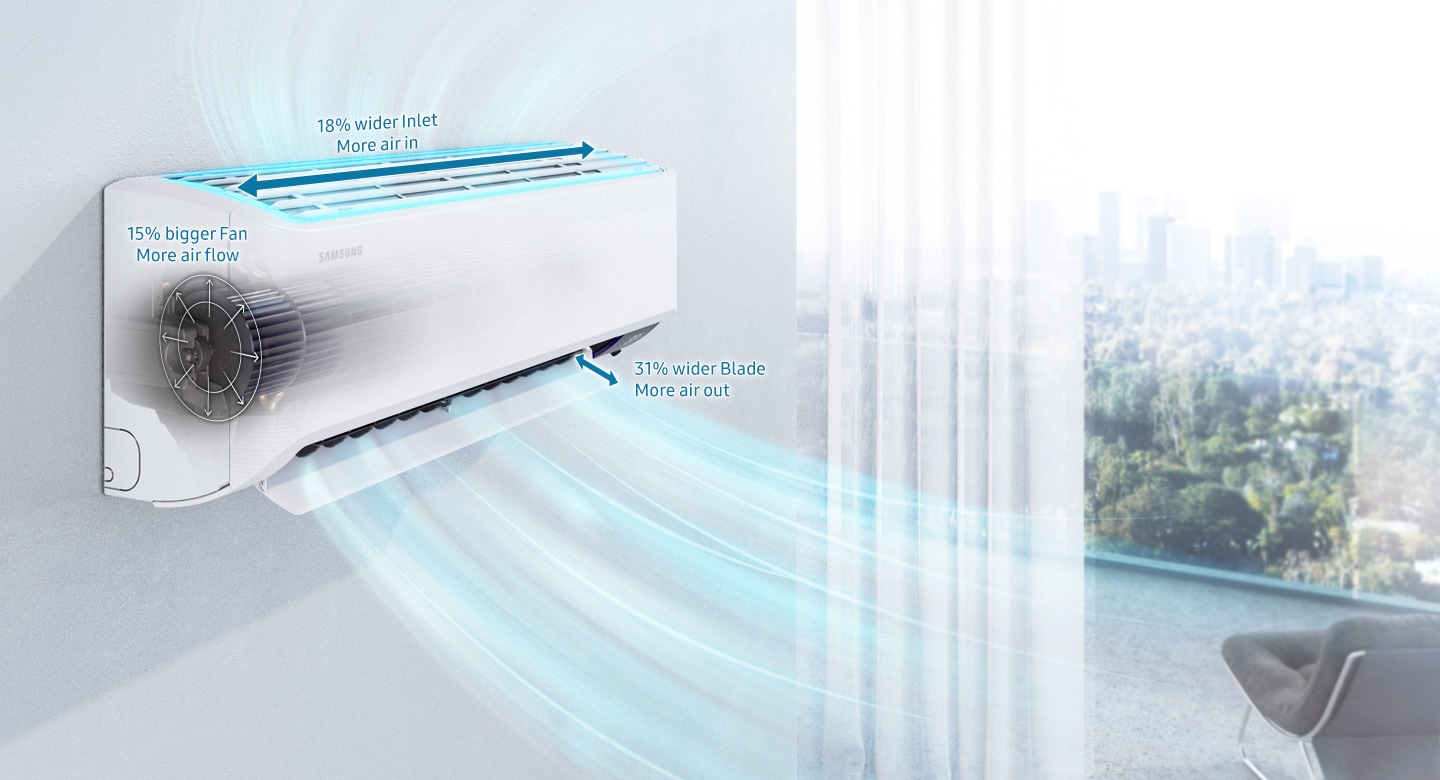

Cool down fast and efficiently
Fast Cooling
Samsung GEO+ air conditioners feature innovative cooling technology to cool your space fast, and at the same time minimise energy consumption. The advanced design consists of a large fan unit; wide air intake area and a wide blade to help disperse the conditioned air far and wide*.
* Tested on AR12TXCAAWKEU model compared with the Samsung conventional model AQ12EASER. Tested on AR24TXFCAWKNEU model. Illustration indicative only, actual effect will vary.
Stay cool and dry
De-humidification Mode
Perfect for those hot, humid times when everything is sticky and unbearable, simply put the Geo+ in De-humidification Mode to reduce moisture in the air, and circulate dry air throughout the room.

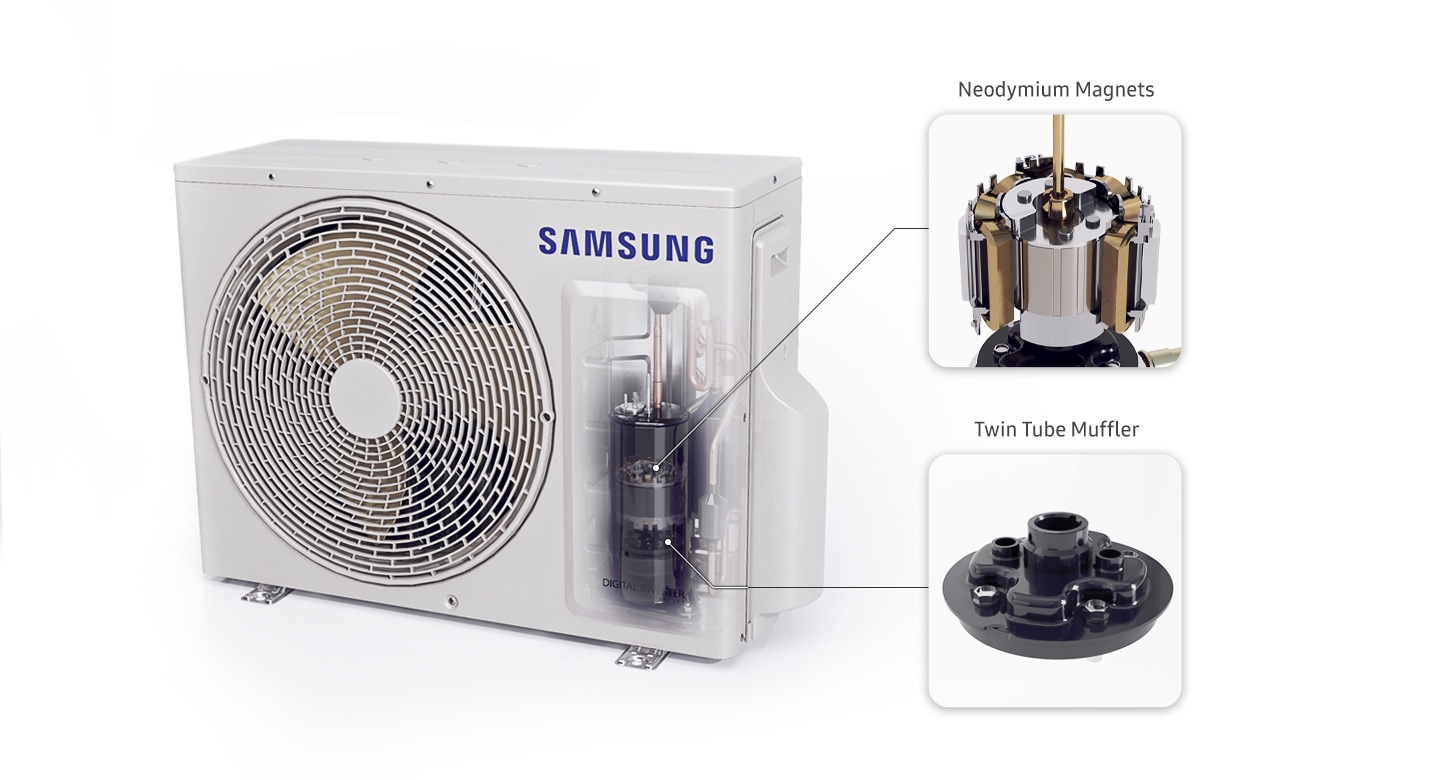

Maintain temperature. Maximize efficiency.
Digital Inverter Boost
Samsung's Digital Inverter Boost technology is designed to maintain the desired temperature with less fluctuation and reduce energy consumption by up to 75%#. It uses strong magnets made of Neodymium and includes a twin-tube muffler, working efficiently and produces minimal noise and vibration.
# Tested on AR09TXCAAWKNEU model, and compared to Samsung conventional model AQ09TSLXEA. Image simulated for illustrative purposes only.
# Tested on AR09TXCAAWKNEU model, and compared to Samsung conventional model AQ09TSLXEA. Image simulated for illustrative purposes only.

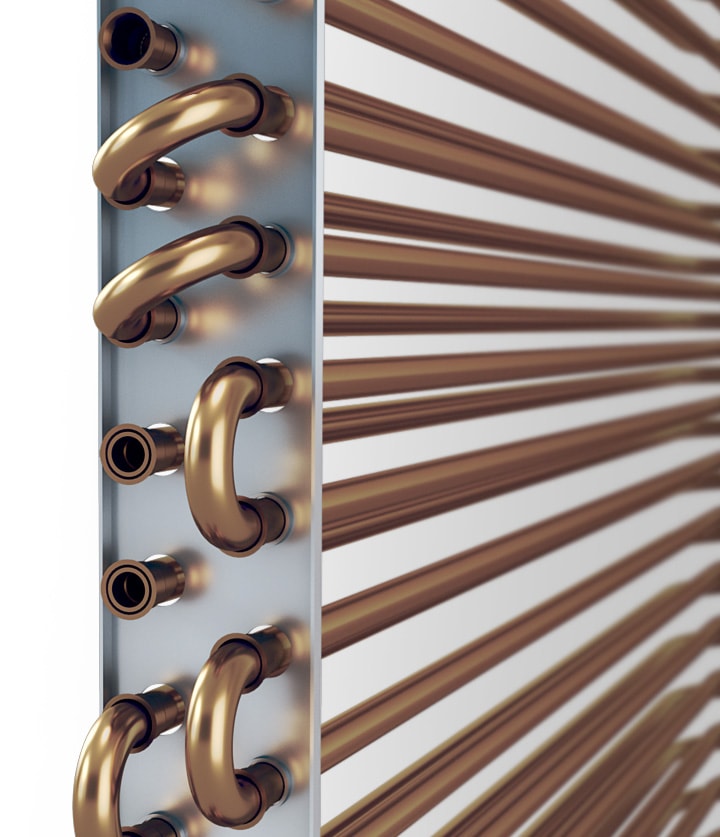

Prevent corrosion for lasting cooling
DuraFin™ Plus
The outdoor unit heat exchanger is made of corrosion-resistant material to help protect the heat exchanger coil from rusting, helping to maintain the optimal performance of the Heat Exchanger. Its corrosion-resistance was tested using the Salt Spray Test (SST) for 480 hours``.
``Tested on AR12TXFCAWKNEU model.
``Tested on AR12TXFCAWKNEU model.
Rest assured with Samsung Quality
5 Year Parts and Labour Warranty
Samsung wall mounted splits are supported by 5 year parts and labour warranty for residential applications.` Full terms and conditions visit Samsung Warranty
`This is in addition to the rights of consumers under consumer guarantees pursuant to the Australian Consumer Law.
`This is in addition to the rights of consumers under consumer guarantees pursuant to the Australian Consumer Law.
Create your preferred climate for a good night's sleep
Good Sleep mode
Good sleep mode automatically adjusts the air flow direction and fan speed to help provide you a comfortable environment while you sleep, at a pre-set temperature and operating time that you control.

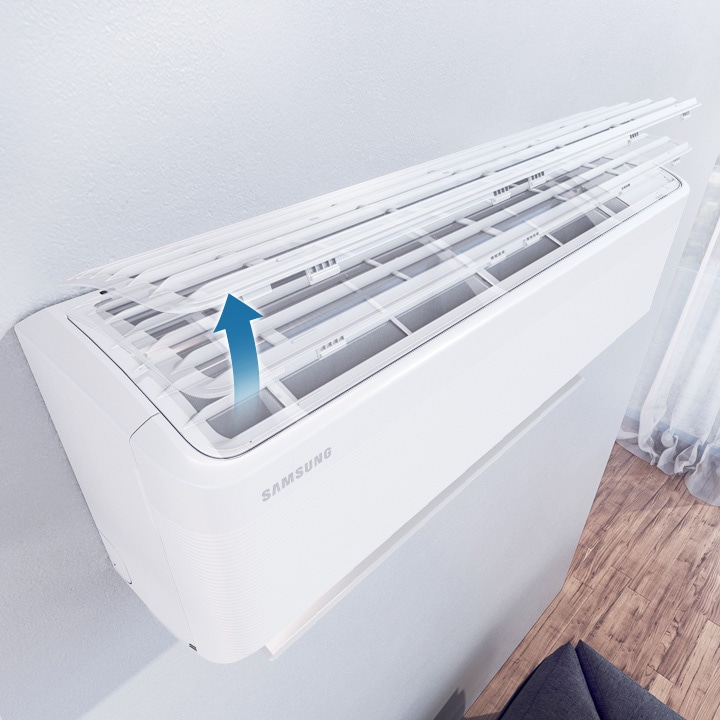

Protect against airborne contaminants
Easy Filter Plus
The Easy Filter Plus is located at the top of the unit and can easily be removed for cleaning. The filter is made of a dense mesh, effective in capturing dust, helping to keep the indoor unit heat exchanger clean and operate efficiently. Its anti-bacterial coating is designed to help you protect against airborne contaminants.^
^Tested in Korea Test Lab (FITI). Data was measured under specific testing conditions and may vary depending on environmental factors and individual use. Illustrative image simulated.
^Tested in Korea Test Lab (FITI). Data was measured under specific testing conditions and may vary depending on environmental factors and individual use. Illustrative image simulated.
Keep fresh
Auto Clean Function
When the Air Conditioner unit is turned off, the Auto Clean function automatically runs the fan on low speed for a period of time to dry off moisture within the heat exchanger of the indoor unit. This keeps it dry to minimise the growth of bacteria.
* Image simulated for illustrative purposes only
* Image simulated for illustrative purposes only

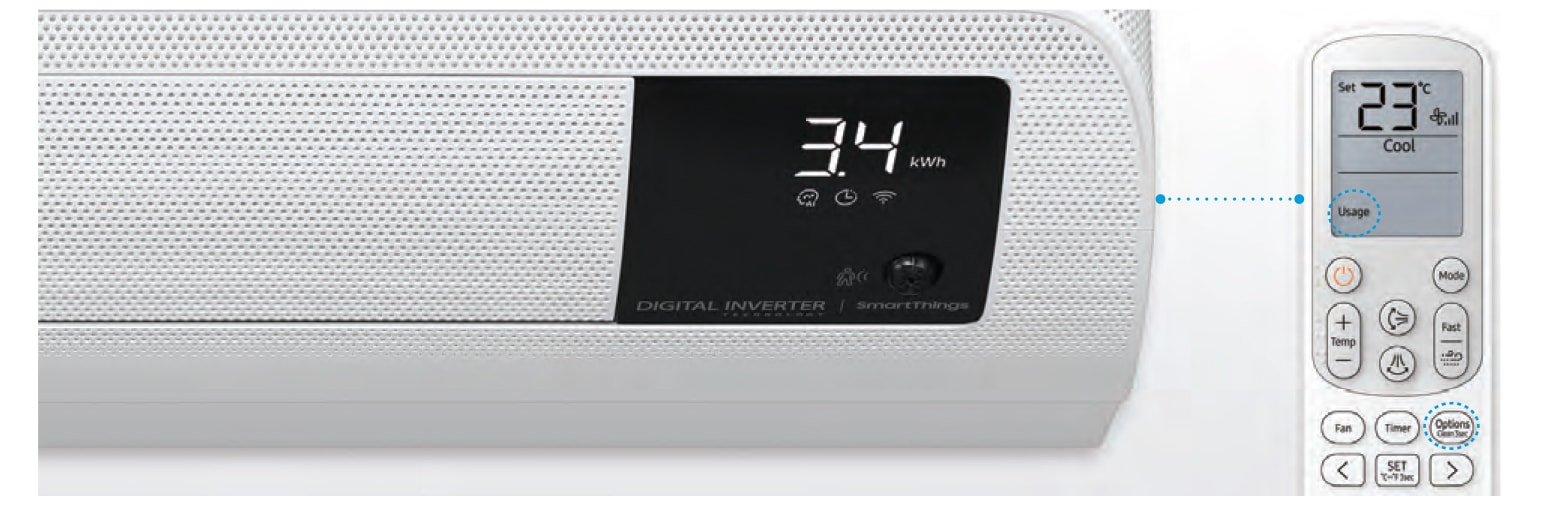

Performance at a glance
Intuitive icon display
A numerical and intuitive icon displays temperature and key operating functions, including energy consumption.## Display lighting can also be turned off using the remote controller.
##Energy consumption is indicative only, and based on operating time. Product image may be different to actual product.
##Energy consumption is indicative only, and based on operating time. Product image may be different to actual product.
SPECIFICATIONS
|
|
|||
System Model Code |
F-AR30TXHYCWK |
|||
Indoor unit model code |
AR30TXHYCWKNSA |
|||
Outdoor unit model code |
AR30TXHYCWKXSA |
|||
Performance |
|
|
|
|
Capacity |
Cooling |
Nominal |
8.0 |
|
Heating |
Nominal |
9.0 |
||
Energy Efficiency Rating |
AEER(W/W) |
3.26 |
||
ACOP(W/W) |
3.27 |
|||
Star Rating |
Cooling |
Stars |
3.0 |
|
Heating |
Stars |
3.0 |
||
Air Flow Rate |
Indoor |
High(L/s) |
293 |
|
Moisture Removal |
Indoor |
(L/hr) |
2.0 |
|
Noise Level |
Indoor |
High/Low dB(A) |
47/30 |
|
|
Outdoor |
High dB(A) |
57 |
|
Electrical Data |
||||
Power Source |
V/Hz/Phase |
220-240V, 50Hz, 1 Phase |
||
Operating Current |
Cooling (Normal) |
Amps |
11.1 |
|
Heating (Normal) |
Amps |
12.5 |
||
Power Input (Nominal) |
Cooling (Normal) |
W |
2450 |
|
Heating (Normal) |
W |
2450 |
||
Power Source |
V/Hz/∅ |
220~240/50/1 |
||
Physical Specifications |
||||
Dimension (mm) |
Indoor (W x H x D) |
mm |
1055 x 299 x 215 |
|
Outdoor (W x H x D) |
mm |
940 x 998 x 330 |
||
Unit weight (Kg) |
Indoor |
Kg |
12.4 |
|
Outdoor |
Kg |
67.8 |
||
Technical Information |
||||
Pipe |
Length (Min) |
m |
3 |
|
Length (Max) |
m |
30 |
||
Height (Max) |
m |
15 |
||
Connection sizes |
Suction |
mm, inch |
∅15.88, 5/8" |
|
Liquid |
mm, inch |
∅6.35, 1/4" |
||
Refrigerant |
Type |
|
R32 |
|
Precharge length |
m |
5 |
||
Operating temperature range |
Cooling |
⁰C |
-10 to 46⁰C |
|
Heating |
⁰C |
-15 to 24⁰C |
WARRANTY
5 YEARS SAMSUNG WARRANTY
Full details can be found on Samsung Website - Air Con Warranty
